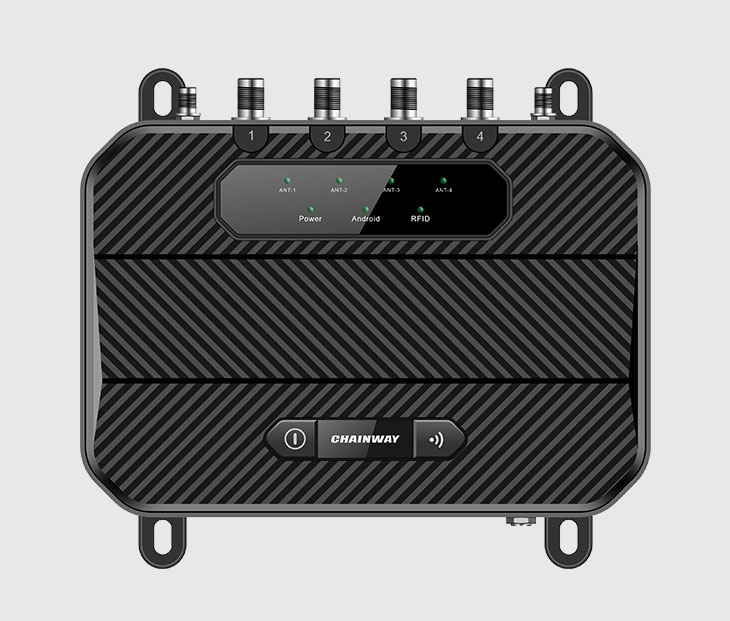

Chainway URA4 là đầu đọc RFID cố định 4 anten, chạy trên nền tảng Android 9/13 tích hợp chip Impinj E710. Đầu đọc hỗ trợ giao tiếp RS232, RJ45 và HDMI. Với độ ổn định cao và hiệu suất vượt trội, URA4 lý tưởng cho việc quản lý kho, lưu trữ và quản lý thư viện, ngân hàng, bán lẻ quần áo và giày dép, giám sát trang sức, ngành công nghiệp đồng hồ, giặt ủi, quản lý dây chuyền sản xuất, tủ dụng cụ y tế và máy bán hàng tự động.
| SPECIFICATIONS | ||||
| Physical Characteristics | Communication | |||
| Dimensions | 214 (L) x 148 (W) x 30 (H) mm | Ethernet | 10/100 Base-T Ethernet (RJ45) | |
| Weight | 1000g / 35.27 oz. (without antenna) | WLAN | Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4,IPV6; Fast roaming: PMKID caching, 802.11r, OKC; Operating Channels: 2.4G(channel 1~13), 5G(channel 36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132,136,140,149, 153,157,161,165), Depends on local regulations; Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc. |
|
| Material | Aluminium alloy | |||
| Expansion Slot | 1 slot for Nano SIM card, 1 slot for TF card | |||
| Input Voltage | DC 10V – 24V | |||
| Standby Current | < 30mA | |||

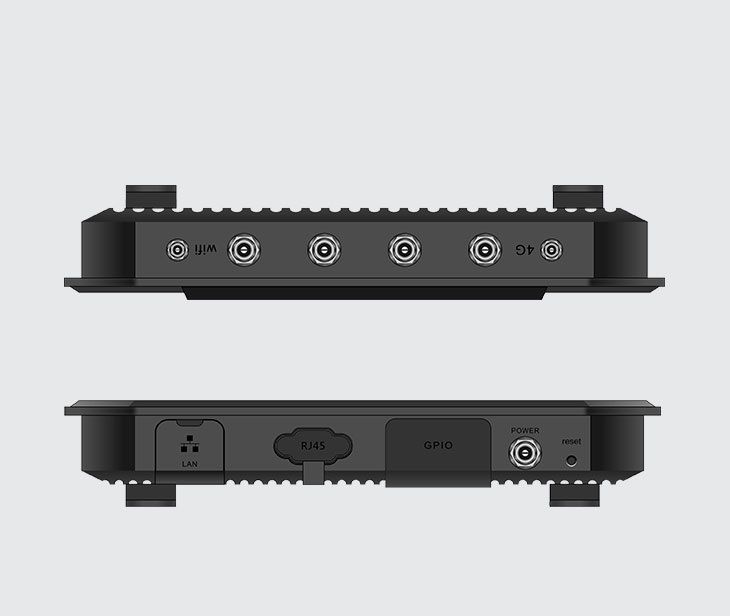

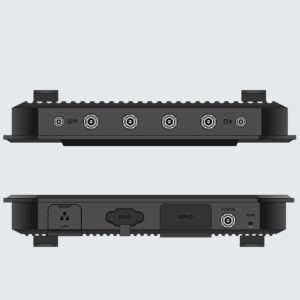

| Comm Interface | RS-232 , RJ45, USB2.0 Type A, Type C, USB Host | WWAN | 2G: B1/B5/B8 | |
| GPIO | 4 Input, 4 Output | (Europe, Asia) | 3G: CDMA EVDO: BC0 TD-SCDMA: B34/B39 WCDMA: B1/B5/B8 4G: TDD-LTE: B34/B38/B39/B40/B41 FDD-LTE: B1/B3/B5/B7/B8/B20 |
|
| Baud Rate | 115200 bps | |||
| Cooling Mode | Air cooling | |||
| Work Current | 1300mA +/-5% @ DC 12V Input | |||

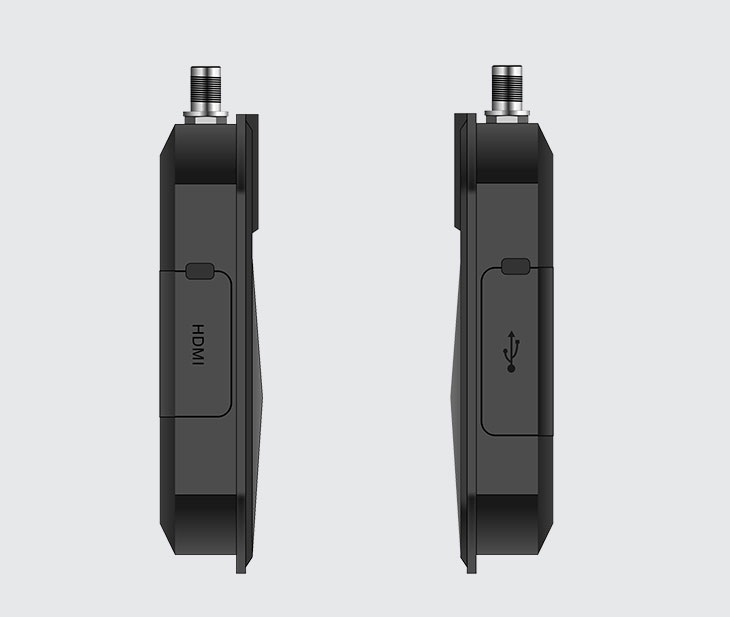

| Display Interface | HDMI Type A, support 720P | |||
| Power Supply | DC (12V), POE (802.3af 13W), POE+ (802.3at 25.5W) | Bluetooth | Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR | |
| Developing Environment | Performance | |||
| Operating System | Android 9.0/13.0 | CPU | Qualcomm 1.8 GHz Octa-core | |
| SDK | Chainway Software Development Kit | RAM+ROM | 3 GB + 32 GB 2 GB + 16 GB (optional) |
|
| Language | Java | |||
| Tool | Eclipse/Android Studio | |||
| UHF RFID | ||||
| Engine | CM710-4 module based on Impinj E710 | Receive Sensitivity | < -84dBm | |
| Frequency | 865-868 MHz / 920-925 MHz / 902-928 MHz | RSSI | Supported | |
| Impinj Gen2X | Supported | Ambient Temp Monitor | Supported | |
| Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C | Fastest Read Rate | 900+ tags/sec | |
| Antenna | Supporting a variety of antennas, such as 6dBic, 9dBic | Antenna Detector | Supported | |
| Output Power | 1W (30dBm, sp +5~+30dBm adjustable, POE/DC power) 2W Optional (33dBm, support +10~+33dBm adjustable, POE+/DC power, for Latin America, etc.) |
Antenna Port | 4 channel 50Ω TNC port | |
